Automotive Application

On Board Battery Charger

APS's proprietary technology in manufacturing the SiC power device enables us provide the full solutions in E-vehicle application. Our devices can be used in the EV-Motor controller, EV Charging station, and Wireless EV charger as well.

With the targets set by China Government, there will be considerable demand for both highly efficient EV motor controller and cost- effective charging stations to fulfil this vast increase in infrastructure. SiC devices show a clear advantage over current Si based devices in term of efficiency and cost in the high power and high temperature environment.

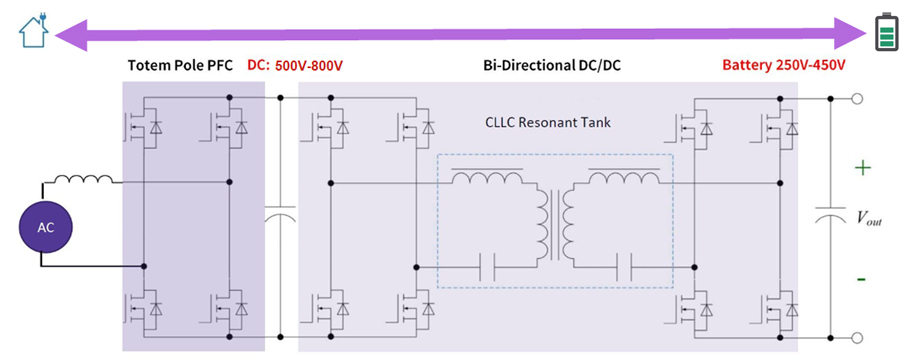

SiC MOSFETs + Sic Diodes offer more efficient solutions at higher switching frequency & smaller size

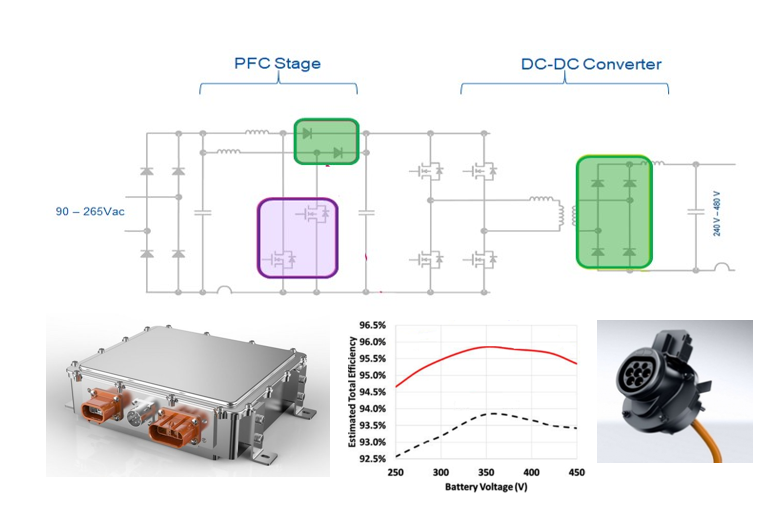

ON board Battery Charger


650V SiC MOSFET

30mΩ-60mΩ/TO247-3, TO247-4

Product RDS(on) Current Rating Package
ACM040A120Q 40 mΩ 62 A TO-247-4
ACM080P120Q 80 mΩ 40 A TO-247-4
ACM060P065Q 55 mΩ 54 A TO-247-4
ACM030P065Q 24 mΩ 90 A TO-247-4

650V SiC Diode

10A – 40A / TO247-3

Product Voltage(V) Current Rating Package
ACD20PD065B 650 V 20 A TO-247-3
ACD40PD065B 650 V 40 A TO-247-3
ACD50PD065B 650 V 50 A TO-247-3
